Research Article(ISSN: 2637-4544)

Evaluation of Gasometric Behavior of Transfused Fetuses in Alloimmunized Pregnant Women According to the Concentration of Circulating Adult Hemoglobin Volume 1 - Issue 4

Naeme José de Sá Filho1* and Alamanda Kfoury Pereira2

  • 1Master Student, Women's Health Postgraduate Program, Federal University of Minas Gerais, Brazil
  • 2Department of Obstetrics and Gynecology, Federal University of Minas Gerais, Brazil

Received: February 02,2018;   Published: February 21,2018

Corresponding author: Naeme Jose de Sa Filho, Departament of Obstetrics and Gynecology, Federal University of Minas Gerais, Av. Prof. Alfredo Balena, 190 - sala 213, Belo Horizonte - MG ZIP CODE 29043-900

DOI: 10.32474/IGWHC.2018.01.000116

Abstract PDF

Also view in:


Introduction: Perinatal hemolytic disease occurs due to the passage of antibodies from maternal to fetal circulation through the placenta; this leads to fetal erythrocytes hemolysis and death (in extreme cases). Regarding the treatment by intrauterine transfusion, little is known about the effect of the concentration of transfused adult red blood cells on the hemodynamics and gas exchanges in the fetal blood.

Objective: to compare the gasometric values between fetuses with gradual elevation of adult hemoglobin (HbA) concentration after intrauterine transfusion and anemic fetuses with only fetal hemoglobin (HbF).

Methods: a longitudinal observational study was carried out from 1998 to 2015 with 365 transfusions performed on 143 fetuses. The HbF concentration was determined by the Kleihauer-Betke test and pH, pCO2, pO2, SatO2, HCO3 and BE values were obtained from umbilical cord venous blood. The cases were ordered according to the deficit of Hb concentration in comparison with normality curve given for each gestational age.

Results: the gradual substitution of fetal by adult red blood cells did not significantly influenced the gasometric parameters for both Hb deficit lower than 5 g/dL [pH (p=0.958), pCO2 (p=0.400), pO2 (p=0.493), SatO2 (p=0.698), HCO3 (p=0.495) and BE (p=0.522)] and higher than 5 g/dL [pH (p=0.601), pCO2 (p=0.065), pO2 (p=0.770), SatO2 (p=0.096), HCO3 (p=0.096) and BE (p=0.525)].

Conclusions: Due to the existence of a hematological system with great capacity of metabolic balance, no associations between gasometric parameters and the percentage of HbF replacement were observed; this, regardless the degree of anemia resulted from Hb deficit

Keywords: Perinatal Hemolytic Disease; Maternal alloimmunization; Intrauterine transfusion; Fetal gasometry; Kleihauer; Fetal


The incidence of Rhesus (Rh) alloimmunization has decreased following the implementation of prophylaxis programmes with anti-D immunoglobulin (Ig); however, it continues to be a cause of perinatal morbidity and mortality due to lack and/or failure of prophylaxis. In addition, some fetuses are affected by this hemolytic disease due to maternal sensitization by other atypical antigens [1]. A fetus with anemia becomes able to withstand extremely low levels of hemoglobin (Hb) due to the maintance of blood circulation through the placenta; however, the severity of this condition results in depletion of the depurative capacity of the placenta [2].

Among invasive procedures for treatment of anemia, intrauterine transfusion by cordocentesis allows the replacement of large quantities of adult red blood cells (RBC) [3]. The volume of transfused blood leads to an expansion of fetoplacental circulation, increases the concentration of adult RBC; thus, there is a consequential reduction of venous return and changes in the physical characteristics of fetal blood that is replaced by adult RBC. In comparison with fetal erythrocytes, adult RBC present lower volume, higher rigidity, decreased oxygenation capacity and increased propensity to aggregate when present in the fetal circulation [4].

A 15% decrease in fetal RBC is expected after each transfusion and severe alterations of biochemical fetal blood indexes are present at the first transfusion, but most variables tend to normalize [5]. The analysis of adult RBC concentration and the knowledge of metabolic gasometric changes due to intrauterine transfusion will contribute to the procedure planning and to the evaluation of fetal heart rate response. Nevertheless, the question arises whether only the replacement of adult RBC without antibodies or also the RBC's behavior would influence the fetal response to anemia caused by perinatal hemolytic disease after intrauterine transfusion.

The intrauterine transfusion in an anemic fetus results in replacement of fetal hemoglobin (HbF) with adult hemoglobin (HbA). Therefore, in addition to reestablishing hematimetric levels, qualitative changes in the fetal blood profile are also observed. Thus, the aim of this study was to compare the gasometric values between fetuses with gradual elevation of HbA concentration after intrauterine transfusion and anemic fetuses with only HbF.


This longitudinal observational study included 143 alloimmunized pregnant women whose fetuses with risk of anemia presented the criteria for intrauterine transfusion. From April 1998 to January 2015, a total of 365 transfusions were conducuted and each cordocentesis was considered one case. Subjects included in the study were pregnant women alloimmunized by erythrocyte antigens whose fetuses were indicated for intrauterine transfusion. They were followed up since prenatal until child's birth at the Fetal Medicine Center in the Hospital of Clinics of the Federal University of Minas Gerais (CEMEFE HC-UFMG). In addition, subjects must have absence of fetal malformations, no risk of premature birth and intrauterine infection.

Cordocenteses were indicated in the following situations: ultrasonographic signs suggestive of fetal compromise due to anemia, severe fetal anemia diagnosed by ultrasound scans, peak systolic velocity in the cerebral artery above 1.5 MoM (multiple of the median), cardiofemoral index above 0.61 [6,7]. Regarding the metabolic evaluation, the following gasometric parameters were evaluated: pH (potential of hydrogen), partial pressure of carbon dioxide (pCO2), partial pressure of oxygen (pO2), oxygen saturation (SatO2), bicarbonate concentration (HCO3) and base excess (BE). The curves of normal distribution of umbilical cord blood gasometry were based on a study with the highest number of fetuses conducted by Riley & Johnson [8].

The concentrations of fetal and adult RBC present in fetal samples were measure by using the Kleihauer-Betke test, which is a quantitative method based on the principle that HbF present in fetal RBC is relatively resistant to acid elution when compared to HbA present in adult RBC [9]. The cases were ordered according to the deficit of Hb concentration in comparison with normality curve; this, based on the gestational age proposed by Nicolaides et al. [10]. Next, the Hb deficits were calculated from the difference between the expected Hb for a given gestational age and the Hb found at the time of cordocentesis. The degree of anemia was based on the Hb deficit and classified as proposed by Bahado-Singh et al. [11]: Hb deficit lower than 5g/dL represents nonanemic fetuses or mild anemia, while severe anemia is predicted for values higher or equal to 5g/dL.

The data description of the variables were analyzed using frequency tables. Quantitative variables were described by mean, median and standard deviation (SD) in order to verify their distribution. Dependency ratios between continuous variables, fetal RBC concentration, gasometric parameters and deficit of Hb concentration were evaluated by using an univariate linear regression. Results were considered significant for an error probability lower than 5% (p<0.05) .


A total of 143 alloimmunized pregnant women submitted to 365 cordocenteses at the CEMEFE HC-UFMG between April 1998 and January 2015 were followed to determine HbF values and gasometric parameters. Subjects had a mean maternal age of 29.5 years and 27.8 weeks was the mean gestational age at the first transfusion. Recorded data also revelead an average of 3.6 gestations and 2.3 deliveries per patient (Table 1).

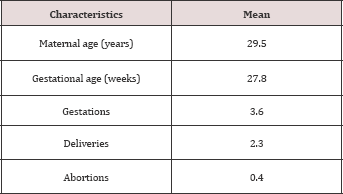

Table 1: Subjects means regarding maternal age, gestational age, number of pregnancies, number of deliveries and number of abortions at the time of the first transfusion.


Table 2 shows that the major cause of maternal sensitization was the non-administration of Ig after delivery, followed by non- administration of post-abortion Ig. The highest incidence of the immunized antigen is related to the presence of both anti-D and anti-C antibodies, while the anti-Kell antibody was the most related to irregular antigens (Table 3).

Table 2: Distribution of subjects regarding the causes of maternal alloimmunization.

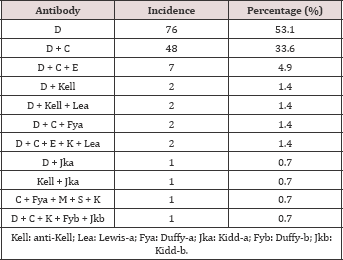

Table 3: Data distribution according to the incidence of maternal antibodies that caused sensitization.

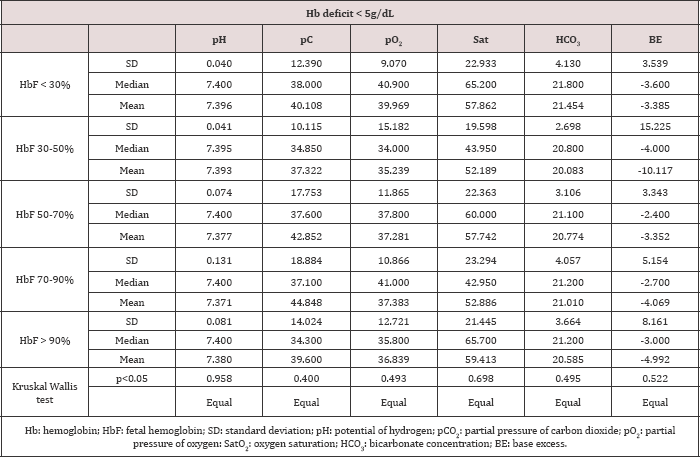

Table 4: Data distribution according to the gasometric parameters, HbF concentration and Hb deficit lower than 5g/dL.


The 7 followed up fetuses were ordered in accordance with gasometric parameters (pH, pO2, pCO2, BE and HCO3) and HbF concentration, and separately analyzed according to the Hb concentration deficit. Regarding the Hb deficit lower than 5g/ dL, there was no difference between HbF concentrations and the gasometric parameters: pH (p=0.958), pCO2 (p=0.400), pO2 (p=0.493), SatO2 (p=0.698), HCO3 (p=0.495) and BE (p=0.522). Similarly, no difference was observed between HbF concentrations and the gasometric parameters if Hb deficit was higher than 5g/ dl: pH (p=0.601), pCO2 (p=0.065), pO2 (p=0.770), SatO2 (p=0.096), HCO3 (p=0.096) and BE (p=0.525). The results are presented in Table 4 and 5.

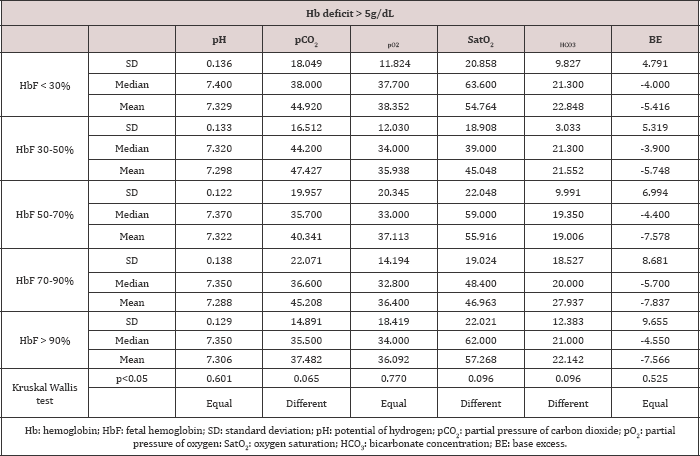

Table 5: Data distribution according to the gasometric parameters, HbF concentration and Hb deficit higher than 5g/dL.



The fetal response to hypoxia has been extensively studied in Obstetrics. The deficient gas exchange between fetus and maternal organisms promotes imbalance in the fetal acid-base system, in which its biochemical expression is fetal acidosis [12]. Gasometry has been used as the main method to measure fetal acidosis; this, using pH value as a fundamental parameter for this diagnosis [13] . Intrauterine transfusion is a treatment for the most severe form of perinatal haemolytic disease and its main objective is the correction of fetal anemia and normalization of hemodynamic conditions, which allows adequate transport of oxygen through the fetal organism. In cases of alloimmunization, invasive procedures for intrauterine transfusion also allow the assessment of fetal acid- base balance by the analysis of blood obtained during cordocentesis[14] .

The relationship between Hb deficiency and acid-base balance parameters makes it possible to recognize anemic fetuses that develop anaerobic metabolism due to the low oxygen levels and consequently become acidemic. In this study, the fetal behavior was assessed by the gasometric point of view that is related to the capacity to maintain fetal wel-being and to contribute to the evaluation of fetal cardiac response. The analysis of most important gasometric parameters of umbilical cord venous blood samples allowed to emphasize how these fetuses behave towards the compensation of circulating blood volume with adult RBC. A relation between adult RBC concentration and gasometric parameters was not observed, independent of the anemia classification (mild or severe).

Even in Hb deficits higher than 5g/dL, values of pH (p=0.601), pCO2 (p=0.065) and pO2 (p=0.770), which are parameters with high diffusion capacity through the placental barrier, were not related to adult RBC concentrations. Within normal limits, pO2 values after intrauterine transfusion probably denote gas exchanges in the placental territory. No accumulation of CO2 in the fetal circulation was observed since no drop of pH values was recorded; thus, our findings suggest adequate gaseous transfer provided by the volume and the replacement of fetal RBC by adult RBC.

The parameters SatO2 (p=0.096), HCO3 (p=0.096) and BE (p=0.525) and their association with adult RBC concentrations were not correlated to the increase of fetal anemic process due to alloimmunization. These results show that the anemic fetus uses several compensatory mechanisms in order to maintain acid-base balance. It is possible that the gasometric parameters represent only a state of fetal metabolism compensation in the face of anemia.

In comparison to other studies, Osanan et al. [15] described factors related to perinatal mortality and intrauterine transfusion; however, none of the gasometric parameters was significant. Goldaber & Gilstrap [12] demonstrated that both pH value and gases concentration in the umbilical vein blood were not altered in fetuses with moderate anemia. Soothill et al. [16] demonstrated that pH changes in the umbilical cord blood occurred only at very advanced stages of fetal anemia, in which Hb from umbilical cord blood was lower than 4g/dL. In fetuses with mild or moderate anemia, Leite [17] did not observe alterations in the blood gas balance and pH values remained above 7.35 in the umbilical vein. Even in cases of severe anemia, Nicolaides et al. [18] found that the blood gasometric parameters remained unchanged; however, pH values dropped below 2.5 in case of Hb deficit above 8g/dL.

A correlation between Hb deficit and fetal pH was not found in our research; however, this was observed in the abovementioned studies mainly in cases considered as severe anemia. This divergence is due to the classification method used for the disease severity. The majority of these studies assume the classification proposed by Nicolaides et al. [10], in which severe anemia is defined by a Hb deficit above 7g/dL; thus, samples present a more evident hematological and metabolic compromise.

The classification proposal of Bahado-Singh et al. [11] was used in our study, in which severe anemia was assumed in case of Hb deficit higher than 5g/dL. This classification was adopted following the precepts of the CEMEFE HC-UFMG follow-up protocol of pregnant women that is in agreement with the studies of Ghi et al. [19], Van Kamp et al. [20] and Simonazzi et al. [21], which described a higher incidence of neurological lesions in fetuses with severe hematological alterations. In order to avoid these lesions and to preserve the neurological potential, fetal metabolic conditions must be observed for timely indication of intrauterine transfusion before gasometric changes.

These results corroborate with the importance of diagnosis and early treatment of fetuses affected by perinatal haemolytic disease. Nomura et al. [22] demonstrated that the treatment itself may result in transient increase of acidemic level and the risk of longterm neurological damage. Therefore, in order to avoid metabolic worsening and consequent neurological damage, transfusion must be indicated at the moment that fetuses do not present alterations in acid-base balance.


Due to the existence of a hematological system with great capacity of metabolic balance, no associations between gasometric parameters and the percentage of HbF replacement were observed; this, regardless the degree of anemia resulted from Hb deficit.


  1. Sperling JD, Dahlke JD, Sutton D, Gonzalez JM, Chauhan SP (2018) Prevention of RhD Alloimmunization: A Comparison of Four National Guidelines. Am J Perinatol 35(2): 110-119.
  2. Pauline A Hurle (2003) Rhesus disease and non-immune hydrops. Curr Obstet Gynaecol 13(4): 197-204.
  3. Brennand J, Cameron A (2008) Fetal anaemia: diagnosis and management. Best Pract Res Clin Obstet Gynaecol 22(1): 15-29.
  4. Moise KJ (2002) Management of rhesus alloimmunization in pregnancy. Obstet Gynecol 100(3): 600-611.
  5. Craparo FJ, F Bonati, P Gementi, U Nicolini (2005) The effects of serial intravascular transfusions in ascetic/hydropic RhD-alloimmunized fetuses. Ultrasound Obstet Gynecol 25(2): 144-148.
  6. Mari G, Deter RL, Carpenter RL, Rahman F, Zimmerman R, et al. (2000) Noninvasive diagnosis by Doppler ultrasonography of fetal anemia due to maternal red-cell alloimmunization. Collaborative Group for Doppler Assessment of the Blood Velocity in Anemic Fetuses. N Eng J Med 342(1): 9-14.
  7. Cabral AC, Reis ZS, Leite HV, Lage EM, Ferreira AL, et al. (2008) Car- diofemoral index as an ultrasound marker of fetal anemia in isoimmunized pregnancy. Int J Gynaecol Obstet 100(1): 60-64.
  8. Riley RJ, Johnson JW (1993) Collecting and analyzing cord blood gases. Clin Obstet Gynecol 36(1): 13-23.
  9. Kleihauer E, Braun H, Betke K (1957) Demonstration of fetal hemoglobin in erythrocytes of a blood smear. Klin Wochenschr 35(12): 637-638.
  10. Nicolaides KH, Soothill PW, Clewell WH, Rodeck CH, Mibashan RS et al. (1988) Fetal haemoglobin measurement in the assessment of red cell isoimmunization. Lancet 1(8594): 1073-1075.
  11. Bahado-Singh R, Oz U, Mari G, Jones D, Paidas M, et al. (1998) Fetal splenic size in anemia due to Rh-alloimmunization. Obstet Gynecol 92(5): 828-832.
  12. Goldaber KG, Gilstrap LC 3rd (1993) Correlations between obstetric clinical events and umbilical cord blood acid-base and blood gas values. Clin Obstet Gynecol 36(1): 47-59.
  13. Francisco RPV, Yamamoto RM, Miyadahira S, Cunha CL, Zugaib M (2000) Correlation between the Assessment of Fetal Well-being, Umbilical Artery pH at Birth and the Neonatal Results in High-risk Pregnancies. RBGO 22(8): 503-510.
  14. Klumper FJ, van Kamp IL, Vandenbussche FP, Meerman RH, Oepkes D, et al. (2000) Benefits and risks of fetal red-cell transfusion after 32 weeks gestation. Eur J Obstet Gynecol Reprod Biol 92(1): 91-96.
  15. Osanan GC, Silveira Reis ZN, Apocalypse IG, Lopes AP, Pereira AK, et al. (2012) Predictive factors of perinatal mortality in transfused fetuses due to maternal alloimmunization: what really matters? J Matem Fetal Neonatal Med 25(8): 1333-1337.
  16. Soothill PW, Nicolaides KH, Rodeck CH, Gamsu H (1986) Blood gases and acid-base status of the human second- trimester fetus. Obstet Gynecol 68(2): 173-175.
  17. Leite JMB (2007) Relationship between gasometry and the degree of anemia in fetus of maternal red cell. Rev Bras Ginecol Obstet 29(11): 602.
  18. Nicolaides KH, Clewell WH, Riddick CH (1987) Measurement of human fetoplacental blood volume in erythroblastosis fetalis. Am J Obstet Gynecol 157(1): 50-53.
  19. Ghi T, Brondelli L, Simonazzi G, Valeri B, Santini D, et al. (2004) Sonographic demonstration of brain injury in fetuses with severe red blood cell alloimmunization undergoing intrauterine transfusions. Ultrasound Obstet Gynecol 23(5): 428-431.
  20. Van Kamp IL, Klumper FJ, Oepkes D, Meerman RH, Scherjon SA, et al. (2005) Complications of intrauterine intravascular transfusion for fetal anemia due to maternal red-cell alloimmunization. Am J Obstet Gynecol 192(1): 171-177.
  21. Simonazzi G, Bernabini D, Curti A, Bisulli M, Pilu G (2016) Fetal cere-bellar damage in fetuses with severe anemia undergoing intrauterine transfusions.J Matern Fetal Neonatal Med 29(3): 389-392.
  22. Nomura RMY, Nishie EN, Brizot ML, Francisco RPV, Liao AW, et al. (2003) Fetal blood gas changes in red-cell transfusion in alloimmunization. RBGO 25(8): 599-603.
